Potting

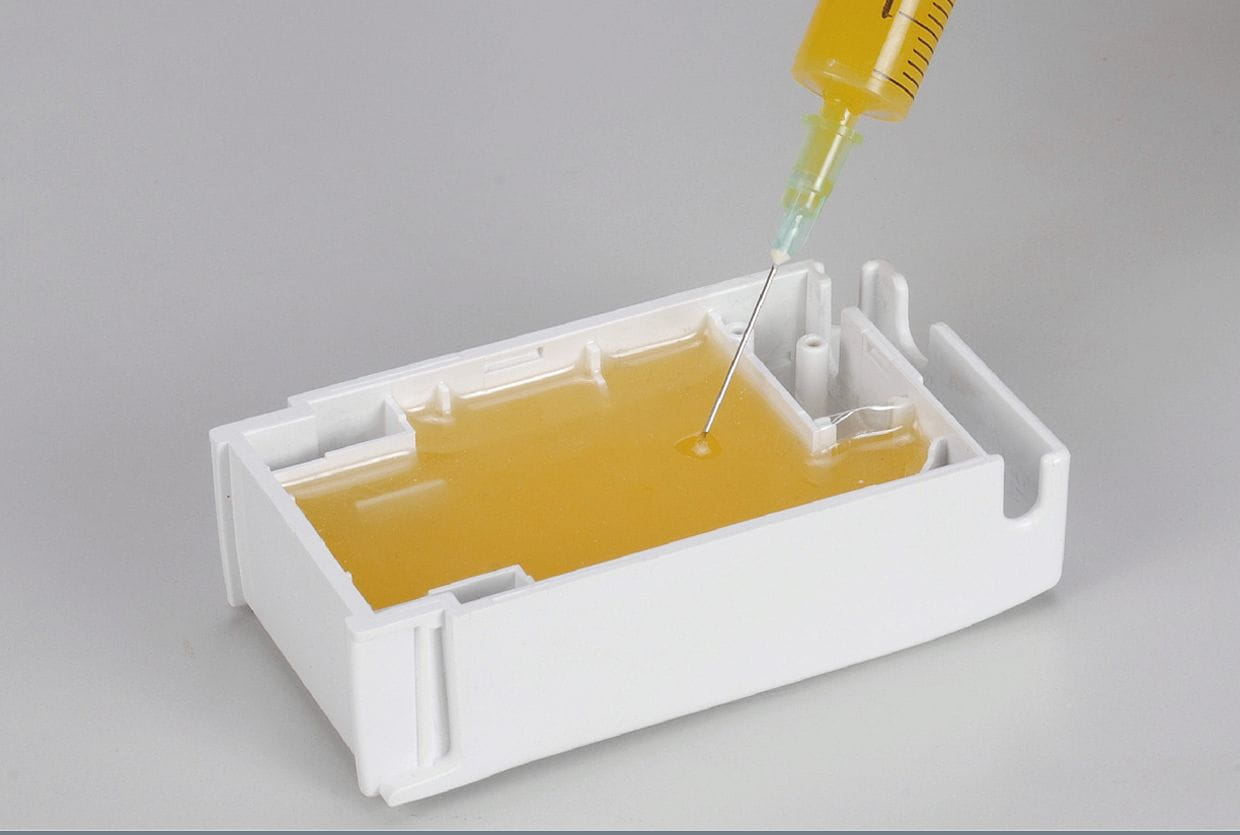

Potting is a process of filling an electronic assembly.

With a solid or gelatinous compound to protect

Against mechanical stress, thermal shock, vibration,

Chemical attack, humidity, and extreme temperatures.



CSI CHEMICAL's potting materials offer excellent

Dielectric properties, protection against moisture and

Harmful contaminants, flame retardant (UL registration),

Thermal conductivity, and resistance to temperature

extremes (-40°C to +200°C).



Our silicone products are suitable for automated dispensing.



FEATURES

Room temperature or heat cure

Excellent deep section cure

Resistance to temperature extremes

Primer-less adhesion to many substrates

Thermal conductive

Wide range of hardness

Excellent dielectric properties

UL approved





Potting is a process of filling an electronic assembly.

With a solid or gelatinous compound to protect

Against mechanical stress, thermal shock, vibration,

Chemical attack, humidity, and extreme temperatures.



CSI CHEMICAL's potting materials offer excellent

Dielectric properties, protection against moisture and

Harmful contaminants, flame retardant (UL registration),

Thermal conductivity, and resistance to temperature

extremes (-40°C to +200°C).



Our silicone products are suitable for automated dispensing.



FEATURES



Room temperature or heat cure

Excellent deep section cure

Resistance to temperature extremes

Primer-less adhesion to many substrates

Thermal conductive

Wide range of hardness

Excellent dielectric properties

UL approved





Key Properties Units

ES8081AB

   Material Type

-

Silicone

   One or Two-Part

-

Two

   Curing Type

-

Heat curing

   Mix Ratio

-

1:1

   Color

-

Black

   Viscosity (Part A)

cP

2000

   Viscosity (Part B)

cP

3000

  Viscosity (Mixed)

cP

2500

   Specific Gravity

g/cm3

1.40

   Working Time (25℃)

minutes

80

   Hardness

Shore

A 50

   Tensile Strength

MPa

0.5

   Elongation

%

40

   Thermal Conductivity

W/m.k

0.50

   Volume Resistivity

Ω.cm

1.0×1013

   Dielectric Strength

kV/mm

18

   Dielectric Constant (50Hz)

-

8.0

   Dielectric Loss (50Hz)

-

0.20

   UL Flame Retardancy

-

UL 94 V-0

   Curing Time

minutes

80℃*30

Key Properties Units

ES8085AGBG

   Material Type

-

Silicone

   One or Two-Part

-

Two

   Curing Type

-

Heat curing

   Mix Ratio

-

1:1

   Color

-

Dark Gray

   Viscosity (Part A)

cP

1900

   Viscosity (Part B)

cP

3100

  Viscosity (Mixed)

cP

2500

   Specific Gravity

g/cm3

1.40

   Working Time (25℃)

minutes

80

   Hardness

Shore

A 50

   Tensile Strength

MPa

0.5

   Elongation

%

40

   Thermal Conductivity

W/m.k

0.70

   Volume Resistivity

Ω.cm

1.0×1013

   Dielectric Strength

kV/mm

18

   Dielectric Constant (50Hz)

-

6.0

   Dielectric Loss (50Hz)

-

0.20

   UL Flame Retardancy

-

UL 94 V-0

   Curing Time

minutes

80℃*30

Key Properties Units

ES8087APBP

   Material Type

-

Silicone

   One or Two-Part

-

Two

   Curing Type

-

Heat curing

   Mix Ratio

-

1:1

   Color

-

Pink

   Viscosity (Part A)

cP

54000

   Viscosity (Part B)

cP

53500

  Viscosity (Mixed)

cP

50000

   Specific Gravity

g/cm3

3.04

   Working Time (25℃)

minutes

40

   Hardness

Shore

A 90

   Tensile Strength

MPa

0.5

   Elongation

%

-

   Thermal Conductivity

W/m.k

2.80

   Volume Resistivity

Ω.cm

1.0×1013

   Dielectric Strength

kV/mm

18

   Dielectric Constant (50Hz)

-

7.5

   Dielectric Loss (50Hz)

-

0.30

   UL Flame Retardancy

-

UL 94 V-0

   Curing Time

minutes

125℃*30

For more product specifications, please contact your salesperson or agent.
