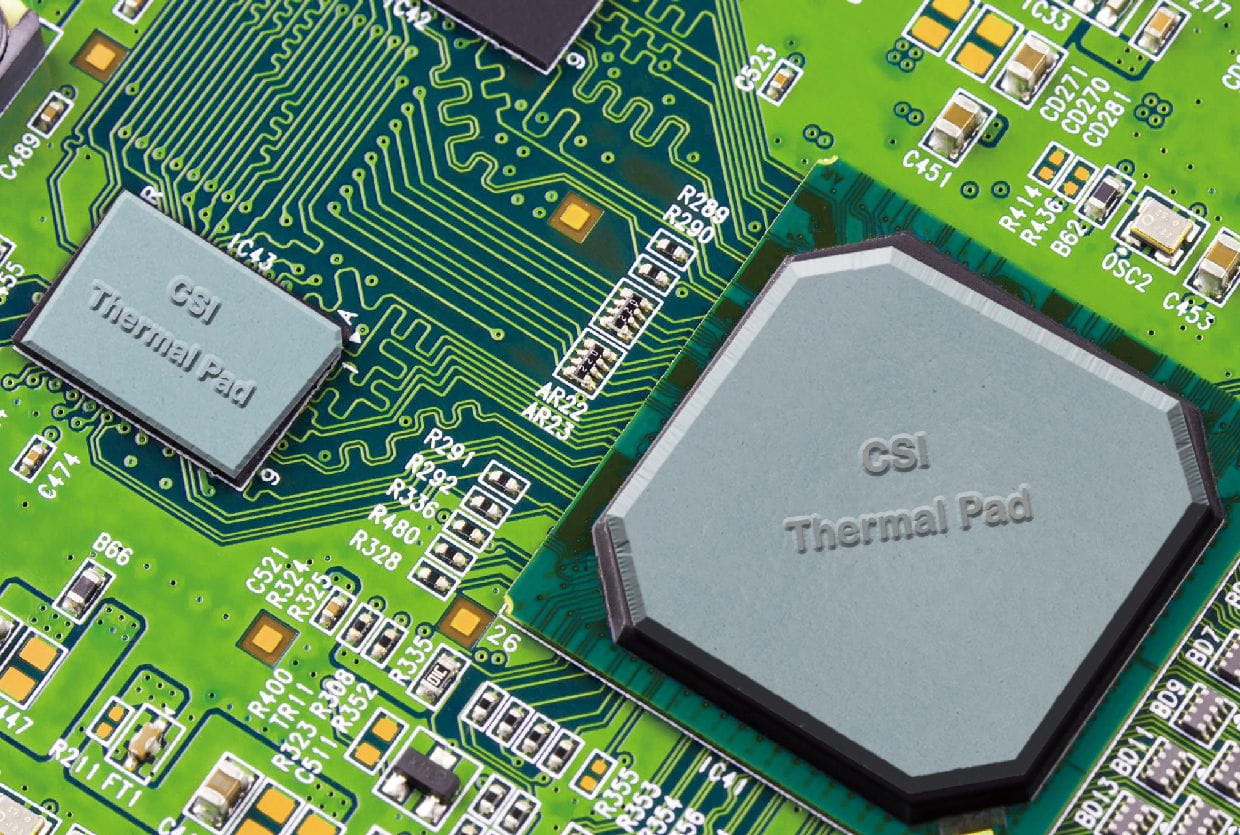

Ultra Soft Thermal Pad





Computers and computer memory ｜Telecom equipment

Handheld device and tablet computer ｜ Vehicle electronics

Lighting equipment ｜ Medical device

Electrical equipment ｜ Industrial automation






FEATURES

▌High thermal conductivity: 1.5 ~ 6.0 W/mK

▌Self-adhesive, no extra adhesive required

▌Soft and elastic

▌Excellent electrical insulation properties

▌Excellent shock absorbing capabilities

▌Different thickness options are available


FEATURES

▌High thermal conductivity: 1.5 ~ 6.0 W/mK

▌Self-adhesive, no extra adhesive required

▌Soft and elastic

▌Excellent electrical insulation properties

▌Excellent shock absorbing capabilities

▌Different thickness options are available





Key Properties Units

ESP015-50

Color

-

Light Gray

Thickness

mm

0.25 ~ 14

Size

-

Products of different sizes may be customized.

Specific gravity

g/cm3

2.6 ± 0.2

Hardness

Shore

oo 30 ± 5

Tensile strength

MPa

0.5

Thermal conductivity

W/m.k

1.5

Thermal resistance

m2K/W

1.2×10-3
Dielectric strength

KV/mm

8
Volume resistivity

Ω.cm

1.0*1010
Dielectric constant

-

6.5

Dielectric loss

-

0.1

Operating
Temperature Range

℃

-50 ~ 200

Key Properties Units

ESP030-501

Color

-

Blue

Thickness

mm

0.25 ~ 14

Size

-

Products of different sizes may be customized.

Specific gravity

g/cm3

3.1 ± 0.2

Hardness

Shore

oo 35 ± 5

Tensile strength

MPa

0.3

Thermal conductivity

W/m.k

3.0

Thermal resistance

m2K/W

6.3×10-4
Dielectric strength

KV/mm

7
Volume resistivity

Ω.cm

1.0*1011
Dielectric constant

-

6.3

Dielectric loss

-

0.1

Operating
Temperature Range

℃

-50 ~ 200

Key Properties Units

ESP060-60

Color

-

Gray

Thickness

mm

0.5 ~ 5

Size

-

Products of different sizes may be customized.

Specific gravity

g/cm3

3.4 ± 0.2

Hardness

Shore

oo 55 ± 5

Tensile strength

MPa

0.1

Thermal conductivity

W/m.k

6.0

Thermal resistance

m2K/W

4.0×10-4
Dielectric strength

KV/mm

5
Volume resistivity

Ω.cm

1.0*1011
Dielectric constant

-

12.6

Dielectric loss

-

0.2

Operating
Temperature Range

℃

-50 ~ 200


※ For more product specifications, please contact your salesperson or agent.
